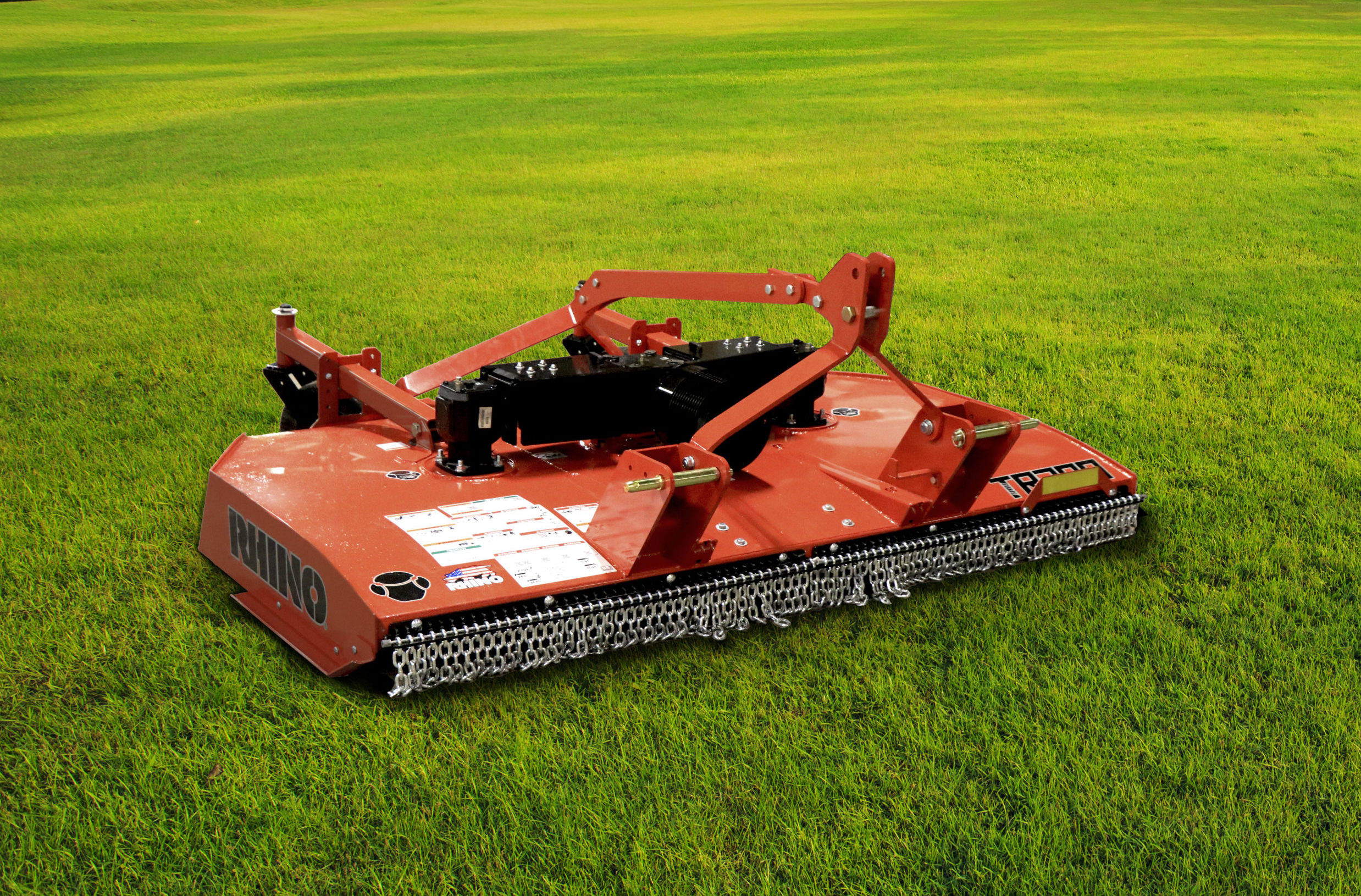

TR 200 Series Multi-Spindle Rotary Cutters
Innovative new suspension and driveline designs.The robust TR Series is the latest addition to RhinoAg’s already-impressive lineup of multi-spindle cutters. These rugged cutters offer superior cut quality, easier maintenance, and longer life expectancy to give you the years of dependable service you’ve come to expect from RhinoAg.
Features and Benefits
- Clean, modernized deck design for easy cleaning and maintenance
- CV drivelines on all pull-type units
- CAT 2 & 3 hitch compatible
- Slip clutch driveline protection
- EZ cutting boxes
Who Should Buy
- Farms
- Ranches
- Orchards
Download Literature
Gallery
Warranty
Industry-leading toughness. Industry-leading warranty.Rhino products are built to take on whatever you can throw at them. But if something should break, you’ll be glad to know our warranties are just as strong. See your local Rhino dealer for complete details.
Full Machine Warranty
Year
Limited Gearbox Warranty
Years
Limited Driveline Warranty
Year
Compare Models
Specifications
| TR208 | TR210 | |
| Cutting Width | 8' (96')' | 10' (120") |
| Overall Width | 103'' | 127 1/4" |
| Overall Length | 91'' (Lift) | 106 1/2" (Lift) |
| 138'' (Pull) | 149 1/2" (Pull) | |
| Cutting Height | 1'' - 16'' | 1" - 15" |
| Height Adjustment | 2.5'' x 8'' Cylinder (Pull) | |
| Jack Stand | Std. - Pull | |
| Hitch | CAT 2/ CAT 3 Std. CAT 2/ CAT 3 Q.H., Pull | |
| Blade Carrier | Infinity - Steel | Infinity - Cast |
| Blades | 1/2'' x 3'' Parallel Updraft | |
| Blade OverLap | 4'' | |
| HP Required | 45 HP (Lift) | 60 HP (Lift) |
| 30 HP (Pull) | 45 HP (Pull) | |
| Gearbox Rating* - Center | 100 HP | |
| Gearbox Rating* - Outboard | 65 HP | 130 HP |
| Gearbox Oil (85W-140) | Factory Filled | |
| Output Shaft Diameter | 1 9/16'' | 2" |
| Blade Tip Speed - 540 RPM | 14,661 FPM | 16,969 FPM |
| Blade Tip Speed - 1000 RPM | N/A | 16,694 FPM |
| Cutting Capacity (Max) | 2'' | |
| Driveline Size | CAT 4 (Lift, Pull) | |
| Driveline Protection | Slip Clutch | |
| Deck Thickness | 12 Ga | 10 Ga |
| Side Skirt | 7 Ga | |
| Tires & Wheels | Laminated Tires 4” x 8” (Lift) Laminated 6” x 9” x 20.75” (Pull) RhinoTrax Foam Filled 7” x 12” x 20.5” (Pull) | |
| Safety Tow Chain | Std. (Pull) | |
| Safety Deflector | Single Chain Guards | Single or Double Chain Guards |
| Weight | 1,600 lbs (Lift) 1,980 lbs (Pull) 860 lbs (Tongue) | 2,170 lbs (Lift) 2,590 lbs (Pull) 1,120 lbs (Tongue) |
| Manuals | ||
| * Gearbox power ratings based on actual field performance | ||
