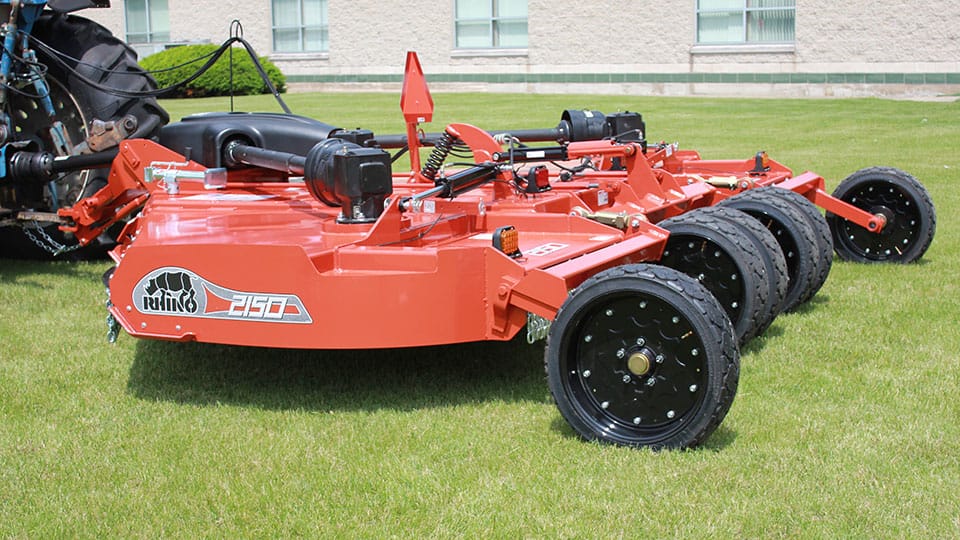

2000 Series 15' Flex-Wing Rotary Cutter
Offering a sleeker design with the same durability customers have come to expect from Rhino®.Some of the new features include the patent-pending, unique cast blade pan. Engineered for outstanding strength and durability, it also provides improved reliability in connecting to the gearbox; greater access to service areas; and smooth, quiet operation. The improved gearbox design, which includes a more stable driveshaft-to-blade-carrier design, offers more torque with the same horsepower than previous models.
Features and Benefits
- Smooth Top and Bottom Deck Design with Dual Cut Chambers
- New Composite Divider Shield
- Mechanical Level Lift
- Infinity Cast Carrier Utilizing Many of the Same Drivetrain Components as the 3150
- New Improved Tongue Design Featuring Standard Clevis
- CAT 5 CV Main and CAT 4 Wing Drivelines
- Coil Spring Suspension
- Equip Your 2000 Series with Rhino Trax
- LED Lights are Standard Equipment
Who Should Buy
- General Mowing
- Pasture Maintenance
- Roadside & Right-of-Way Mowing
- Commercial Mowing
- Farm Use
- Industrial Mowing
Download Literature
Warranty
Industry-leading toughness. Industry-leading warranty.Rhino products are built to take on whatever you can throw at them. But if something should break, you’ll be glad to know our warranties are just as strong. See your local Rhino dealer for complete details.
Full Machine Warranty
Year
Limited Gearbox Warranty
Years
Gearbox Seal Warranty
Years
Limited Driveline Warranty
Years
Specifications
| 2150 | 2155 | |
| Cutting Width | 180” | 180" |
| Transport Width* | 116'' | 116" |
| Transport Height | 75'' | 75'' |
| Overall Width* | 75'' | 75'' |
| Overall Length* | 172'' | 172'' |
| Cutting Height* | 2”-14” | 2”-14” |
| Height Adjustment | Hydraulic Cylinder | Hydraulic Cylinder |
| Jack Stand | Standard | Standard |
| Hitch | Clevis | Clevis |
| Blade Carrier | Infinity | Infinity |
| Blades | 1/2” x 4” Parallel Lift | 1/2” x 4” Parallel Lift |
| Blade Overlap | 6” | 6” |
| Horsepower Required | 50 HP | 50 HP |
| Gearbox Rating Divider ** | 160 HP | 160 HP |
| Gearbox Rating Center & Wing ** | 130 HP | 160 HP |
| Gearbox Oil (85W-140) | Factory Filled | Factory Filled |
| Output Shaft Dia | 2” | 2 3/8” |
| Blade Tip Speed Center 540 RPM | 14,861 FPM | 16,286 FPM |
| Blade Tip Speed 1000 RPM | 15,570 FPM | 15,420 FPM |
| Blade Tip Speed Wing 540 RPM | 14,861 FPM | 16,286 FPM |
| Blade Tip Speed 1000 RPM | 15,776 FPM | 15,963 FPM |
| Cutting Capacity | 2 1/2” | 3" |
| Driveline Size Main | Cat 5 CV | Cat 5 CV |
| Driveline Size Wing | Cat 4 | Cat 4 |
| Driveline Protection | Slip Clutch | Slip Clutch |
| Deck Thickness Center | 10 Ga. (Top), 7 Ga. (Bottom) | 10 Ga. (Top), 7 Ga. (Bottom) |
| Deck Thickness Wing | 10 Ga. (Top & Bottom) | 10 Ga. (Top & Bottom) |
| Side Skirt | 1/4” x 12 3/8” | 1/4” x 12 3/8” |
| Tire Selections | Rhino Trax, Foam Filled, Laminated, or Pneumatic (4, 6, or 8 Tires) | Rhino Trax, Foam Filled, Laminated, or Pneumatic (4, 6, or 8 Tires) |
| Wing Lift | Mechanical Level Lift | Mechanical Level Lift |
| Wing Flex (Degrees) | 25° Down, 87° Up, 45° Operational | 25° Down, 87° Up, 45° Operational |
| Weight (Approx.) | 4,290 lbs. (w/ Single Chains & 6 Rhino Trax Tires) | 4,290 lbs. (w/ Single Chains & 6 Rhino Trax Tires) |
| Tongue Weight | 1,430 lbs. | 1,430 lbs. |
| Safety Tow Chain | Standard | Standard |
| LED Light Kit | Standard | Standard |
| Safety Deflectors | Deflectors, Chains, or Combination | Deflectors, Chains, or Combination |
| Manuals | ||
| * Cutting heigh dependent on tire size | ||
| ** Gearbox power rating based on actual field performance |
