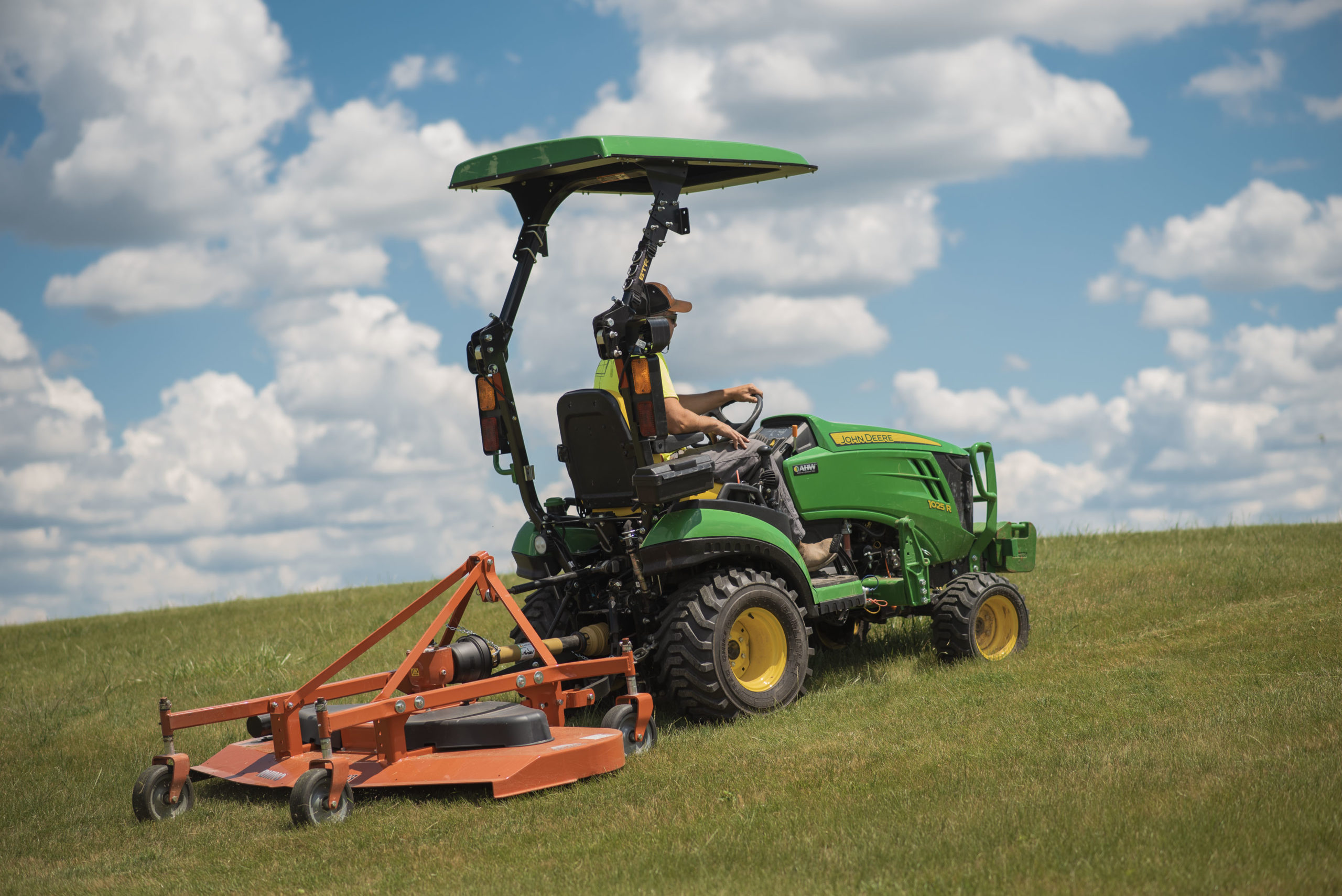

FA Series Finishing Mowers
An even cut, every time.The FA Series Finishing Mower Series Features A Tapered, Sloped Discharge Area To Provided Even Distribution Of Cut Material Across The Width Of The Mower. This allows for less clumping and windrowing than similar mowers that use chain guards or rubber deflectors. In addition, built-in baffles help control the air and material flow through the cutting chamber, assuring an even cut and even material distribution across the width of the mower.
Over-the-deck axle design provides outstanding structural integrity and easy access to conventional height adjustments. Durable ABS molded safety shields are standard to provide safe operation for years to come and easy access to lube points.
Features and Benefits
- Three-Blade Design With 1” Blade Overlap Reduces the Possibility of Streaks and Skips in Your Yard.
- Available in 5’, 6’, and 7’ Widths to Provide the Best Match for Your Yard and Tractor.
- Top and Bottom Hitch Points "Float," Allowing the Mower to Ride With the Terrain.
Who Should Buy
- Home Owners
- Schools & Universities
Download Literature
Gallery
Warranty
Industry-leading toughness. Industry-leading warranty.Rhino products are built to take on whatever you can throw at them. But if something should break, you’ll be glad to know our warranties are just as strong. See your local Rhino dealer for complete details.
Full Machine Warranty
Year
Specifications
| FA-513 | FA-613 | FA-713 | |
| Mowing Width | 59'' | 71'' | 83'' |
| Overall Width | 63'' | 75'' | 87'' |
| Blade Number | 3 | 3 | 3 |
| Cutting Height | 3/4'' - 4 1/4'' | 3/4'' - 4 1/4'' | 1 1/2'' - 4 1/2'' |
| Height Adjustment | Bushing | Bushing | Bushing |
| Hitch | CAT 1 | CAT 1 | CAT 1 |
| Blades | 6mm x 60mm | 6mm x 60mm | 6mm x 60mm |
| Blade Overlap | 1'' | 1'' | 1'' |
| PTO HP Required | 16 - 40 | 22 - 50 | 30 - 60 |
| Gearbox Ratio | 1:2.8 | 1:2.8 | 1:2.8 |
| Blade Tip Speed | 14,070 FPM | 14,183 FPM | 15,257 FPM |
| Cut Capacity (Max.) | Grass | Grass | Grass |
| Driveline Size | Cat 3 ASAE | Cat 3 ASAE | Cat 3 ASAE |
| Drive Belt Selection | 'B'' | 'B'' | 'B'' |
| No. of Drive Belts | 2 | 2 | 2 |
| Deck Thickness | 4mm (.157'') | 4mm (.157'') | 5mm (.197'') |
| Tire & Wheels | Solid | Solid | Solid |
| Anti-Scalp Roller | Standard | Standard | Standard |
| Discharge | Rear | Rear | Rear |
| Approx. Weight (lbs) | 432 lbs. | 472 lbs. | 816 lbs. |
